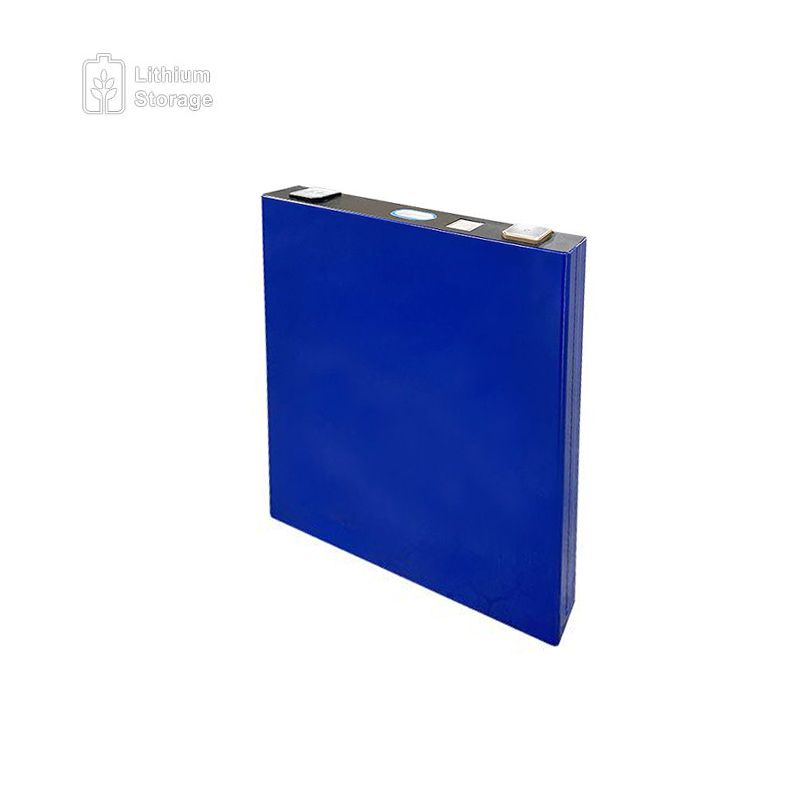

Long Cycle Life LFP100Ah (LiFePO4 100Ah Battery) Cell
- Lifepo4 Cells 100ah is 3.2V 100ah prismatic lithium iron phosphate batteries,
- Weight: 1.93±0.1kg,
- Energy density: 165Wh/kg,
- Cycle life: ≥6000 times
Product Description
Long Cycle Life Lifepo4 100Ah Battery Description
| LITHIUM STORAGE can offer different terminal solutions for cells with welding terminals, including screw terminals and Nut terminals. These solutions have passed multiple inspection testing items such as drawing force, shear force, and torque testing, etc., and have been applied in various electric vehicle and energy storage projects in different countries. |  |
| No. | Item | Specification | Note |
| 1 | Rated Capacity | 100Ah | @0.5C |
| 2 | Nominal Voltage | 3.2V | |
| 3 | ActualVoltage Range | 2.5-3.65V | |
| 4 | Constant Discharge Current | ≤150A | Typical value=52A |
| 5 | Peak Discharge Current | ≤300A | 25℃,50%SOC,30S |
| 6 | Constant Charge Current | ≤100A | Typical value=52A |
| 7 | Peak Charge Current | ≤200A | 25℃,50%SOC,30S |
| 8 | Operating Temperature | Charge:0℃~55℃ Discharge:-30℃-55℃ |
|
| 9 | Storage Temperature | 30C-60°C | |
| 10 | Cell Dimensions |
Thickness:52.320±0.50mm Length:148.40±0.60mm Height:115.40±0.60mm |
|
| 11 | Cathode Material | LFP | |
| 12 | Weight | 1.93±0.1kg | |
| 13 | Energy density | 165Wh/kg | |
| 14 | Cycle life | ≥6000times | @0.5C,100%DOD |
| 15 | Terminal | Welding/Nut terminal |
|
|
To suit the various connection demand from customers, it is available to support cells with screw terminals or nut terminals excepting welding terminals. The relevant torque is recommended for avoiding excessive force which can damage the terminal thread when the bolts are tight.For applied bolts, busbar, and tighten torque are shown in the table below. |
|
Parameter table |
|||||||
|
Cell type |
Screw Terminals |
Nut Terminals |
Fasten torque |
Remark |
Standard Busbar Type |
Non-standardbusbar type |
Current Capacity |
|
LFP40Ah |
/ |
M6*14 |
6N*m |
Max repeated terminal screw times≤3 |
BS1-LFP40A |
BS2-LFP40A |
1C |
|
LFP50Ah |
/ |
M6*14 |
6N*m |
BS1-LFP50A |
BS2-LFP50A |
1C |
|
|
LFP100Ah |
/ |
M6*14 |
6N*m |
BS1-LFP100A |
BS2-LFP100A |
1C |
|
|
LFP135Ah |
/ |
M6*14 |
6N*m |
BS1-LFP135A |
BS2-LFP135A |
1C |
|
|
LFP205Ah |
M6*16 Bolt |
M6*18 |
6N*m |
BS1-LFP205A |
BS2-LFP205A |
1C |
|
|
LFP280Ah |
M6*16 Bolt |
M6*18 |
6N*m |
BS1-LFP280A |
BS2-LFP280A |
1C |
|
|
LFP280Ah long cycle |
M6*16 Bolt |
M6*18 |
6N*m |
BS1-LFP280A |
BS2-LFP280A |
1C |
|
|
LFP302Ah |
M6*16 Bolt |
M6*18 |
6N*m |
BS1-LFP302A |
BS2-LFP302A |
1C |
|
|
NCM102Ah |
/ |
M6*18 |
6N*m |
BS1-NCM102A |
BS2-NCM102A |
1C |
|
|
NCM177Ah |
/ |
M6*18 |
6N*m |
BS1-NCM177A |
BS2-NCM177A |
1C |
|
This product has passed the following certifications:
|
Cell type |
Management System |
Products Certification |
|||||||||||||
|
ISO-9001 |
IATF16949 |
ISO-14001 |
ISO-45001 |
GB/T-31485-2015 |
GB/T-31486-2015 |
GB/T-31484-2015 |
IEC62619 |
UL1642 |
UL9540 |
UL1973 |
MSDS |
UN38.3 |
BIS |
JET |
|
|
LFP40Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
/ |
√ |
|
LFP50Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
√ |
√ |
√ |
√ |
|
LFP100/Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
√ |
√ |
√ |
√ |
|
LFP135Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
√ |
√ |
|
LFP205Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
/ |
√ |
|
LFP280Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
/ |
√ |
|
LFP280Ah long cycle |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
√ |
√ |
√ |
√ |
/ |
√ |
|
LFP302Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
/ |
√ |
|
NCM102Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
/ |
√ |
|
NCM177Ah |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
/ |
/ |
/ |
/ |
√ |
√ |
/ |
√ |
|
01 Carton for air transportation and plywood case for sea transportation |
02 Meeting the UN38.3 package standard for dangerous goods |
Invest in Long-Term Energy Solutions
In the quest for sustainable and efficient energy storage, the Long Cycle Life LFP100Ah LiFePO4 100Ah Battery stands out as a reliable and high-performing choice. With its long cycle life, advanced LiFePO4 technology, efficiency, reliability, safety, and versatility, this battery empowers individuals and organizations to embrace renewable energy, reduce their carbon footprint, and contribute to a greener future.
Investing in the Long Cycle Life LFP100Ah LiFePO4 100Ah Battery means investing in a long-lasting and sustainable energy storage solution. Experience the benefits of exceptional performance, reliability, and environmental friendliness as you unlock the full potential of energy storage for your residential, commercial, or industrial applications. Embrace the power of the Long Cycle Life LFP100Ah LiFePO4 100Ah Battery and join the movement towards a more sustainable and energy-efficient tomorrow.
