36V Forklift Battery Pack
Switch to LiFePO4 batteries for your forklifts! LST Battery,one of the largest lithium forklift battery supplier in China, offers consistently high performance in material handling. You can save up to 70% in battery costs over 5 years. With a professional manufacturing process and outstanding quality, LST Battery also boasts a perfect service system and multiple certifications, with best warranty.
Product Description

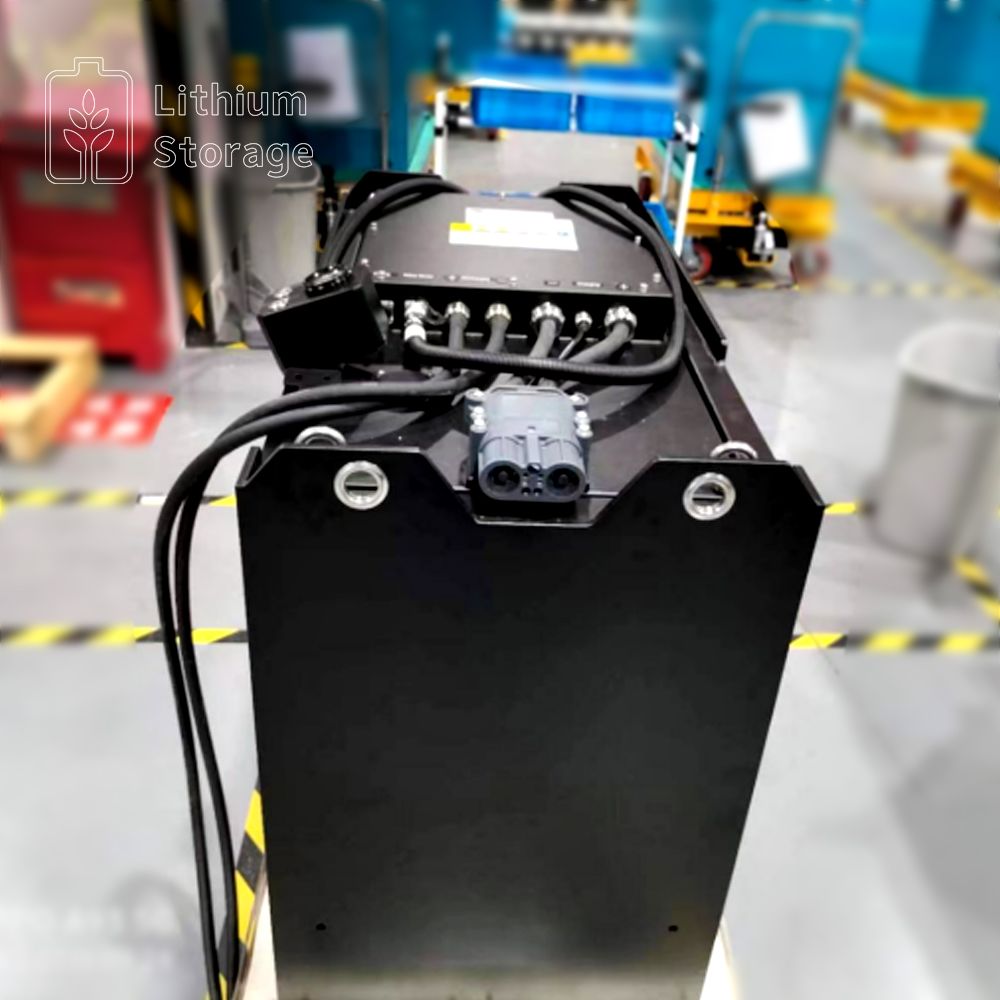

Smart FLT Series: Forklift Lithium Battery 38.4V824Ah for Crown RMD6095S-32 400
Features of 36volt forklift battery for sale
● Remote&Onsite Product Support
● GPS&GPRS function
● Charger communication commissioning
● Charge and discharge connector adaption
● Interactive integrated Display with voice, buzz and switch button
● Customization service against different brand of forklifts
● IP 54 structure design
● Flexible supply in additional weight
● Vehicle CAN communication support
Specification
|
No. |
Items |
Specification |
Note |
|
|
PC161710-38.4V824A |
||||
|
206Ah4P12S |
||||
|
1 |
Nominal voltage(V) |
38.4 |
|
|
|
2 |
Operating voltage(V) |
min |
30 |
|
|
3 |
max |
43.8 |
|
|
|
4 |
Group mode |
206Ah4P12S |
|
|
|
5 |
Nominal energy（KWh ） |
31.64 |
25±2℃ |
|
|
6 |
Weight（Kg） |
≈1180kg |
With additional weight |
|
|
7 |
Nominal capacity(Ah) |
824 |
25±2℃ |
|
|
8 |
Maximum continuous charge current（A） |
300 |
25±2℃ |
|
|
9 |
Maximum continuous discharge current（A） |
300 |
25±2℃ |
|
|
10 |
Maximum pulse discharge current（≤5s）（A） |
750 |
25±2℃ |
|
|
11 |
Shipping consistency（mv） |
30 |
Voltage difference between cell ＜30mV |
|
|
12 |
Charging port |
REMA640A（female） |
customizable |
|
|
13 |
Discharging port |
SB350 |
customizable |
|
|
14 |
GPRS communication |
4G |
optional |
|
|
15 |
SOC operating range（%） |
20~100 |
|
|
|
16 |
Insulation requirements(MΩ) |
≥20 |
500V DC, High voltage output to battery shell, at the normal temperature and humidity |
|
|
17 |
cooling method |
Natural cooling |
|
|
|
18 |
Shipping capacity |
≈30% |
SOC is consistency in the same batch |
|
|
19 |
Dimension L (mm) |
960 |
For Crown RMD6095S-32 400 with additional weight
|
|
|
Dimension W (mm) |
510 |
|||
|
Dimension H (mm) |
760 |
|||
|
20 |
Charger |
Optional |
|
|
Can LSB Smart LFT forklift lithium batteries be checked from your phone or computer?
● The LSB Smart LFT forklift lithium batteries are designed for high performance and reliability, with advanced features such as active cell balancing, temperature management, and overvoltage/undervoltage protection.
● The cloud connectivity of the batteries allows for real-time monitoring and management of fleets of forklifts, enabling businesses to optimize their operations and reduce downtime.
● The Battery Pack Assistant Forklift Lithium Batteries app provides a user-friendly interface for accessing battery data and setting parameters, with features such as historical data analysis, charging management, and fault diagnosis.
● The WeChat applet and web gate offer additional options for accessing battery information, allowing users to monitor their fleets from anywhere with an internet connection.
Overall, the LSB Smart LFT forklift lithium batteries offer a range of benefits over traditional lead-acid batteries, including longer lifespan, faster charging, and lower maintenance requirements.
Standardized Production Process for Lithium-Ion Forklift Batteries
To ensure high-quality delivery of its products, Lithium Storage has established a standardized production process for manufacturing lithium-ion forklift batteries. The process includes several key steps, such as battery consistency inspection, battery module production, module inspection, pre-installation of electric control boards, pre-installation of covers and boxes, module installation into the box, busbar and wiring harness installation, complete inspection, electric control board installation, electric control board wiring, cover installation and labeling, system testing, and packaging. These steps help to ensure the quality and reliability of the lithium-ion forklift batteries produced by Lithium Storage.
